Equipment Hire
Nitrogen membrane systems and diesel compressors, available for short and long-term hire across Australia.
Our fleet includes above and below ground nitrogen membrane systems, high-capacity above ground systems, and mobile diesel compressors. Browse the range below, or get in touch to talk through your site's flow rate, purity and power requirements.
Above or Underground Systems

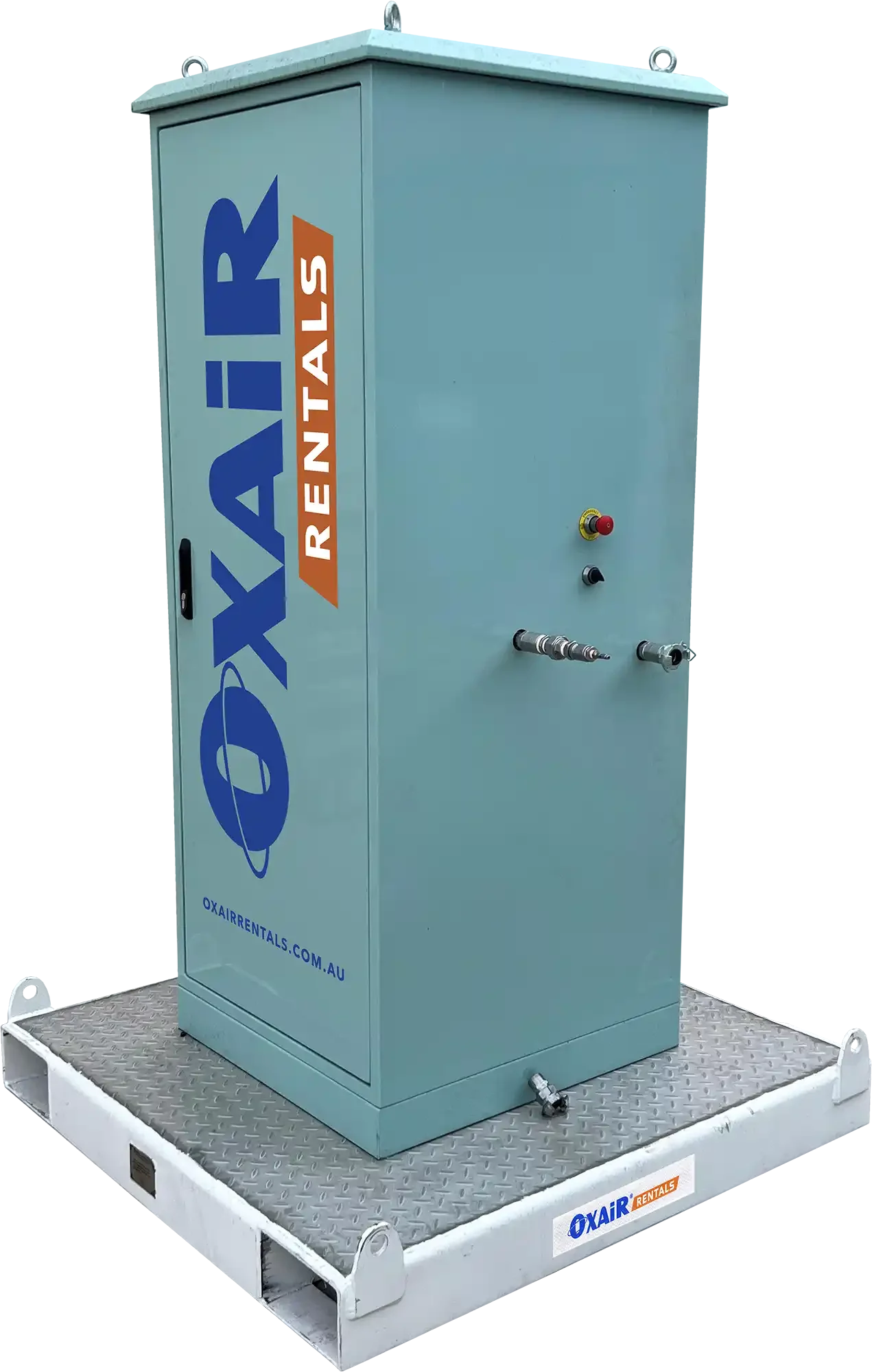

Zone 1 Hazardous Area -
1 Membrane Unit
Purity: 97%
Flow rate: 34 Sm³/hr @ 7 bar / 72 Sm³/hr @ 13 bar
Membrane skid: 1.0m L × 1.0m W × 2.0m H (combined membrane + filtration unit, not separately dimensioned)
Filtration skid: N/A — included within the combined unit above
Frame: N/A
Transport: N/A
Weight: TBC
Connections: TBC
Power: No electrics required; oxygen analyser requires a 12V power source
Rated for hazardous area operation. System comes complete with filtration and a membrane dryer. Built with no aluminium and rated for underground use — all internals are stainless steel.
Zone 1 Hazardous Area -

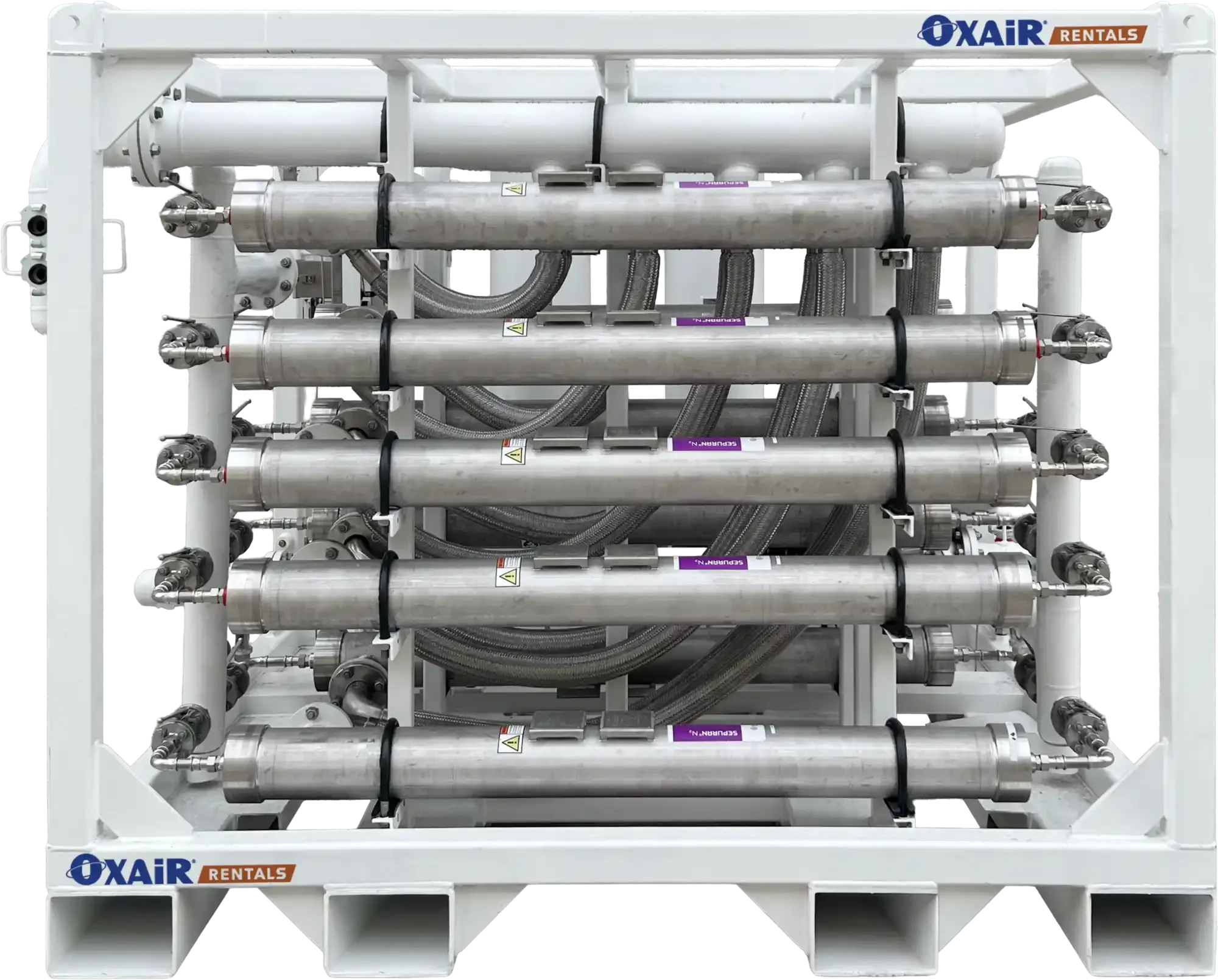

10 Membrane Unit
Purity: 97%
Flow rate: 400 L/S (1,440 Sm³/hr) @ 13 bar
Membrane skid: 3.0m L × 2.4m W × 2.7m H
Filtration skid: 3.0m L × 2.4m W × 2.7m H
Frame: Heavy duty frame
Transport: N/A
Weight: TBC
Connections: TBC
Power: No electrics required; oxygen analyser requires a 12V power source
System comes complete with 2 carbon filters on the membrane skid plus an additional 5-stage filtration skid — 7-stage filtration in total, protecting the membranes from oil contamination.
Zone 1 Hazardous Area -
14 Membrane Unit
Purity: 97%
Flow rate: 400 L/S (1,440 Sm³/hr) @ 13 bar
Membrane skid: 3.0m L × 2.4m W × 2.7m H
Filtration skid: 3.0m L × 2.4m W × 2.7m H
Frame: Heavy duty frame
Transport: N/A
Weight: TBC
Connections: TBC
Power: No electrics required; oxygen analyser requires a 12V power source
Above Ground Systems
Purity: 97%
Flow rate: 544 L/S (1,960 Sm³/hr) @ 13 bar
Membrane skid: 6.0m L × 2.4m W × 2.7m H
Filtration skid: 6.0m L × 2.4m W × 2.7m H
Frame: N/A
Transport: Fits inside a 20ft High Cube sea container, for ease of operation and transport
Weight: TBC
Connections: TBC
Power: TBC

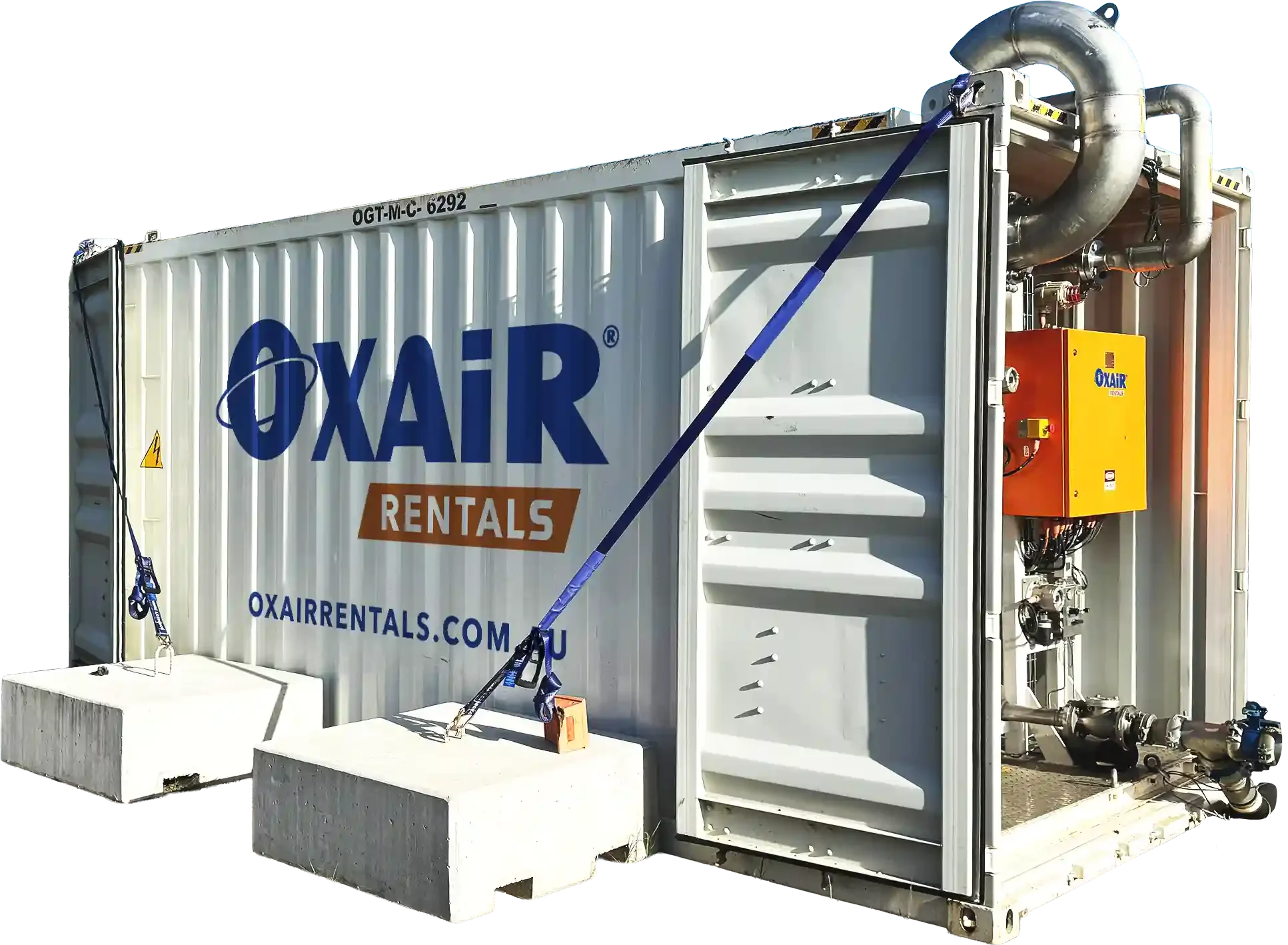

18 Membrane System
System comes complete with 2 carbon filters on the membrane skid plus an additional 5-stage filtration skid — 7-stage filtration in total, protecting the membranes from oil contamination.

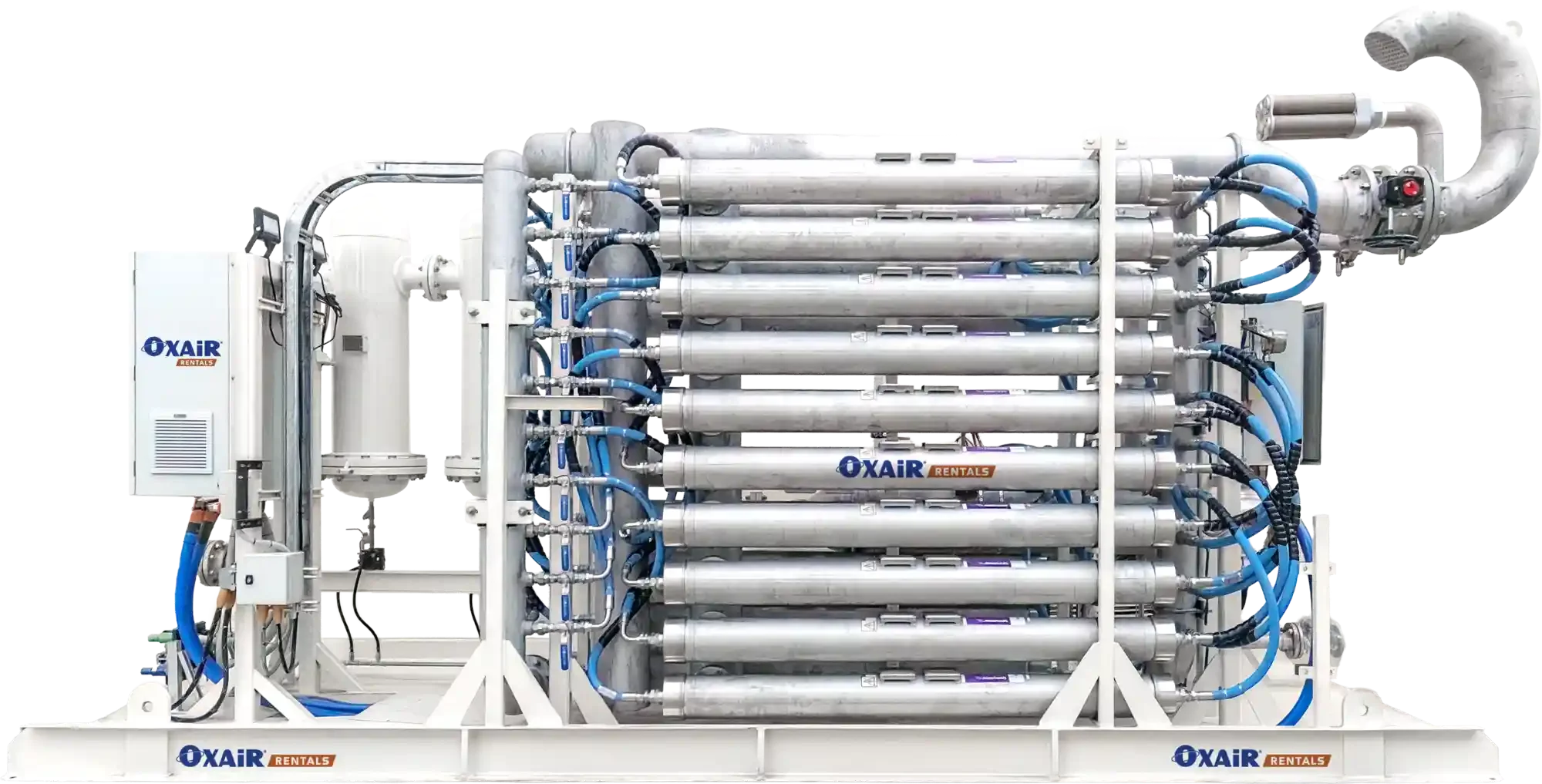

20 Membrane System
Purity: 97%
Flow rate: 605 L/S (2,180 Sm³/hr) @ 13 bar
Membrane skid: 6.0m L × 2.4m W × 2.7m H
Filtration skid: 6.0m L × 2.4m W × 2.7m H
Frame: N/A
Transport: Slides into a 20ft High Cube sea container for transport and protection
Weight: TBC
Connections: TBC
Power: TBC
System comes complete with 2 carbon filters on the membrane skid plus an additional 5-stage filtration skid — 7-stage filtration in total, protecting the membranes from oil contamination.
Above or Underground Filtration Systems

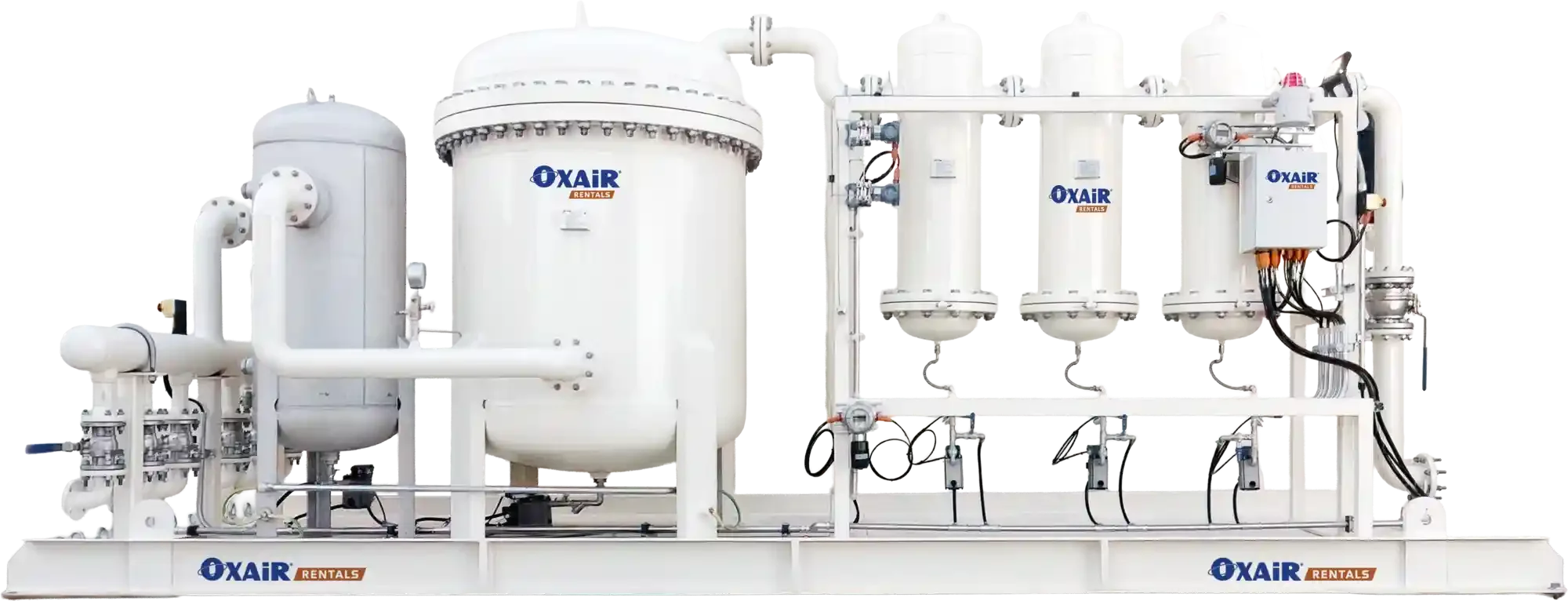

5000 SCFM Superior Filtration Module - Above Ground config
Purity: N/A — filtration only, not a nitrogen generation unit
Flow rate: Rated at 5,000 SCFM
Membrane skid: N/A
Filtration skid: 6.0m L × 2.4m W × 2.7m H
Frame: Heavy duty skid frame
Transport: Slides into a 20ft High Cube sea container for transport and protection
Weight: TBC
Connections: TBC
Power: TBC
5-stage filtration system, including a 316SS centrifugal bulk water separator, a large mist eliminator with a 200mm SS mesh pad across the full vessel diameter, and 3-stage coalescing filters.

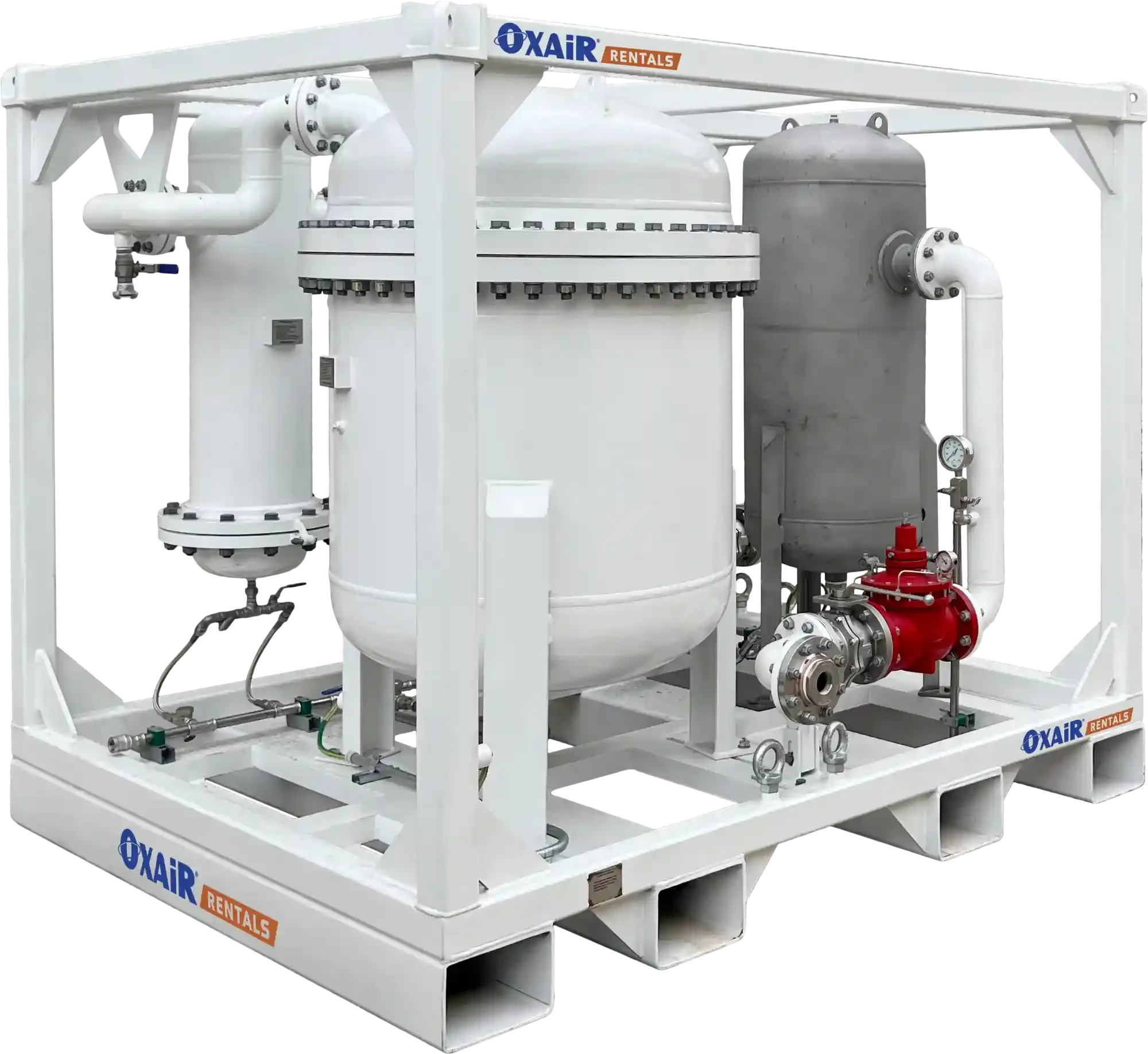

5000 SCFM Superior Filtration Module - Above/Underground config
Purity: N/A — filtration only, not a nitrogen generation unit
Flow rate: Rated at 5,000 SCFM
Membrane skid: N/A
Filtration skid: 3.0m L × 2.4m W × 2.7m H
Frame: Heavy duty frame
Transport: N/A — no sea-container detail given for this configuration in the spreadsheet
Weight: TBC
Connections: TBC
Power: TBC
5-stage filtration system, including a 316SS centrifugal bulk water separator, a large mist eliminator with a 200mm SS mesh pad across the full vessel diameter, and 3-stage coalescing filters.

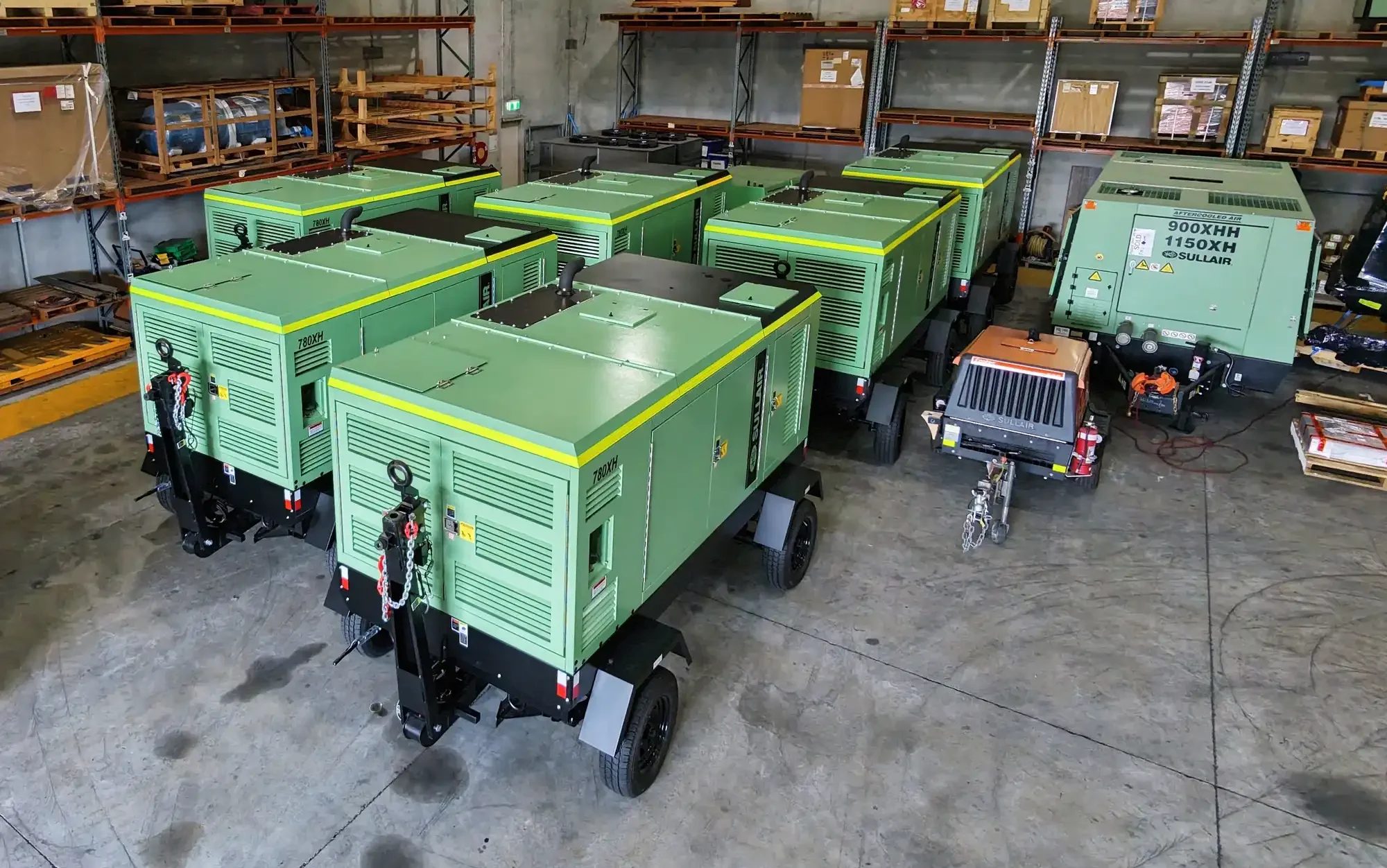

Diesel Compressors
Model C240TS-14 Trailer Mounted Mobile Diesel Compressor
Purity: N/A — not applicable to compressors
Flow rate: 847 SCFM (24.0 m³/min) @ 14.0 bar (200 PSI)
Membrane skid: N/A
Filtration skid: N/A
Frame: Trailer-mounted
Transport: Compressor is mounted on a trailer for ease of movement
Weight: 3,500 kg
Connections: TBC
Power: Diesel — 6-cylinder Cummins engine
Gardner Denver (CompAir) diesel rotary screw compressor, fitted with a 6-cylinder Cummins engine.

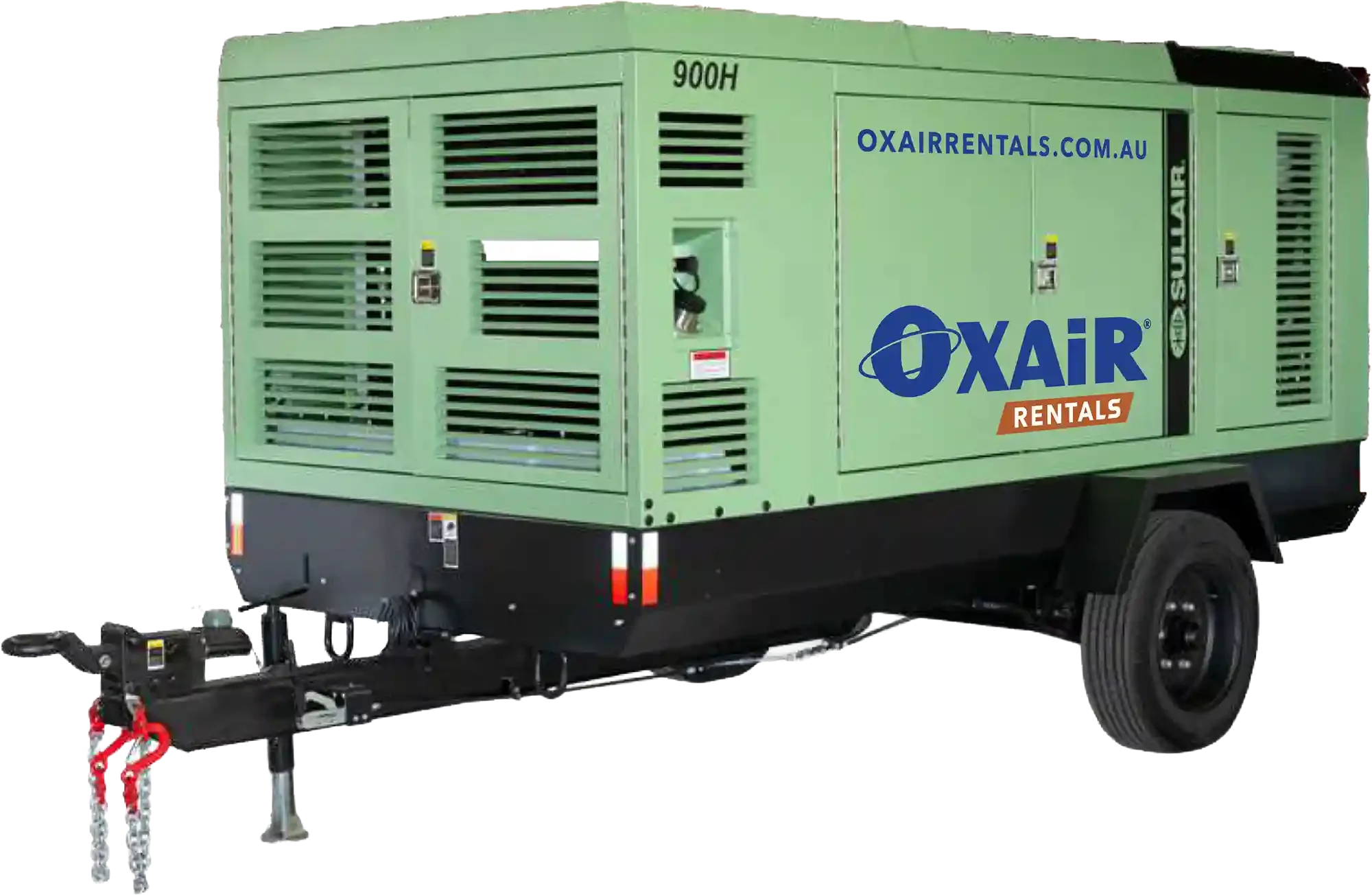

Model 780 HH-13 Trailer Mounted Mobile Diesel Compressor
Purity: N/A — not applicable to compressors
Flow rate: 780 SCFM (22.1 m³/min) @ 13.8 bar (200 PSI)
Membrane skid: N/A
Filtration skid: N/A
Frame: Trailer-mounted
Transport: Compressor is mounted on a trailer for ease of movement
Weight: 4,150 kg
Connections: TBC
Power: Diesel — 6-cylinder Cummins engine
Sullair (Hitachi) mobile diesel rotary screw compressor, fitted with a 6-cylinder Cummins engine.
PLEASE NOTE: For sites with existing grid power, a fixed electric compressor is also available as an alternative to our mobile diesel units.

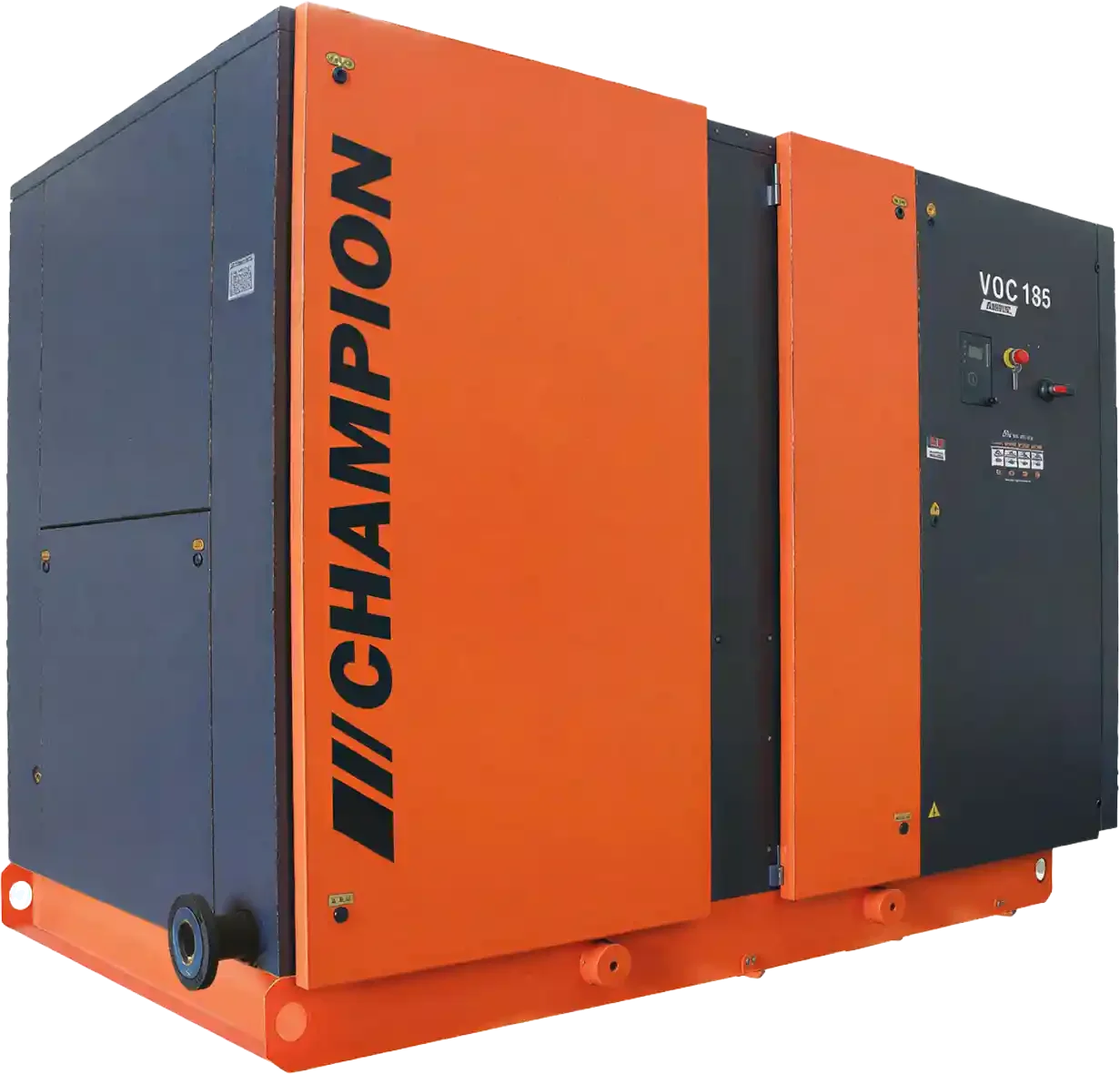

Model VOC 185-13 Electric Fixed Installation Compressor
Purity: N/A — not applicable to compressors
Flow rate: 824 SCFM (23.3 m³/min) @ 13.0 bar (188 PSI)
Membrane skid: N/A
Filtration skid: N/A
Frame: Fixed installation
Transport: N/A — not trailer-mounted, this unit is a permanent/semi-permanent site installation
Weight: 3,970 kg
Connections: TBC
Power: Electric — requires grid power connection
Sullair (Hitachi) electric rotary screw compressor.
